Hard drives tests
Amiga 1200 with Blizzard 1260/66
with FastATA 1200 controller

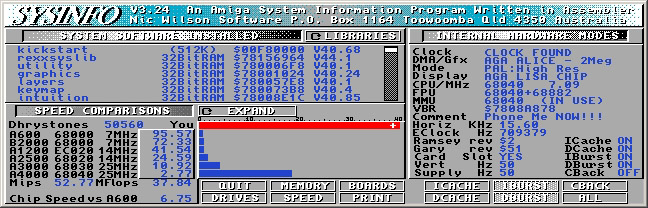

Blizzard 1260/66 speed screen (SysInfo 3.24)


ATA3.driver launched

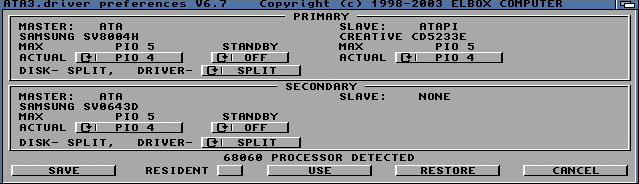

ATA3Prefs screen

PRIMARY MASTER: Samsung Spin Point V 80GB UATA/100 (SV8004H) • Formatted Capacity: 80.0GB • Interface: 40-pin EIDE • Rotational Speed: 5400rpm, • Average Seek Times: 8.9ms, • Buffer Size: 2MB

SECONDARY MASTER: Samsung Spin Point V 6.4GB UATA/66 (SV0643D) • Formatted Capacity: 6.4GB • Interface: 40-pin EIDE • Rotational Speed: 5400rpm, • Average Seek Times: 9.5ms, • Buffer Size: 512kB

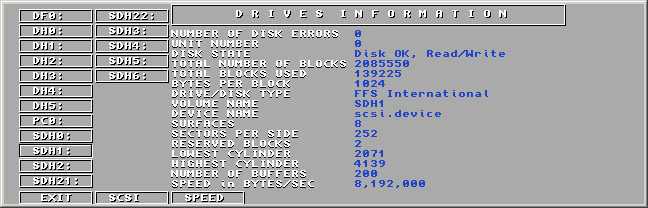

The speed of SDH1: partition (Samsung SV8004H) as measured by SysInfo 3.24: 8,192,000 bytes/s

The speed of DH1: partition (Samsung SV0643D) as measured by SysInfo 3.24: 7,786,455 bytes/s

The speed of SDH1: partition (Samsung SV8004H) as measured by DriveSpeed: 8,561,311 bytes/s
The speed of DH1: partition (Samsung SV0643D) as measured by DriveSpeed: 8,160,000 bytes/s
Copying (reading & writting) 141,592,580 bytes from SDH1: to DH1: 44 seconds
Copying (reading & writting) 141,592,580 bytes from DH1: to SDH1: 44 seconds



MKSoft DiskSpeed 4.2 Copyright © 1989-92 MKSoft Development ------------------------------------------------------------ CPU: 68040 AmigaOS Version: 40.68 Normal Video DMA Device: SDH1: Buffers: 200 Comments: The speed of SDH1: partition (Blizzard 1260 with FastATA 1200) Testing with a 262144 byte, MEMF_FAST, LONG-aligned buffer. Create file: 6553600 bytes/sec Write to file: 7274496 bytes/sec Read from file: 7831552 bytes/sec

Check the results of the same tests when these hard drives are connected to Amiga 1200 IDE port.
