Hard drives tests
Amiga 1200 with Apollo 1240/40
(drives connected to Amiga 1200 motherboard IDE port)

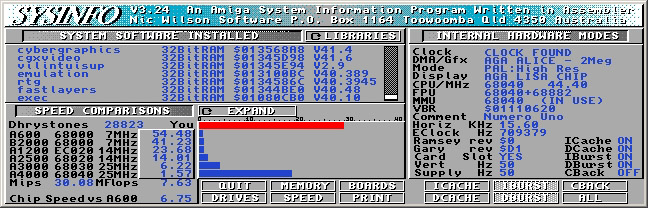

Apollo 1240/40 speed screen (SysInfo 3.24)

Two hard drives connected to A1200 IDE port:

Samsung Spin Point V 80GB UATA/100 (SV8004H) • Formatted Capacity: 80.0GB • Interface: 40-pin EIDE • Rotational Speed: 5400rpm, • Average Seek Times: 8.9ms, • Buffer Size: 2MB

Samsung Spin Point V 6.4GB UATA/66 (SV0643D) • Formatted Capacity: 6.4GB • Interface: 40-pin EIDE • Rotational Speed: 5400rpm, • Average Seek Times: 9.5ms, • Buffer Size: 512kB

The speed of SDH1: partition (Samsung SV8004H) as measured by SysInfo 3.24: 2,333,626 bytes/s

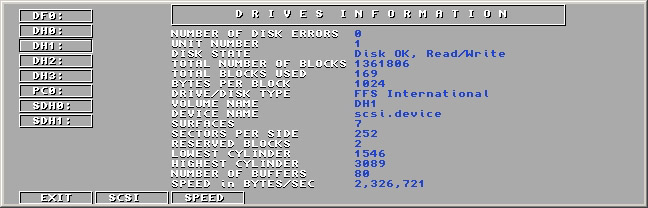

The speed of DH1: partition (Samsung SV0643D) as measured by SysInfo 3.24: 2,326,721 bytes/s


The speed of SDH1: partition (Samsung SV8004H) as measured by DriveSpeed: 2,310,796 bytes/s
The speed of DH1: partition (Samsung SV0643D) as measured by DriveSpeed: 2,185,104 bytes/s

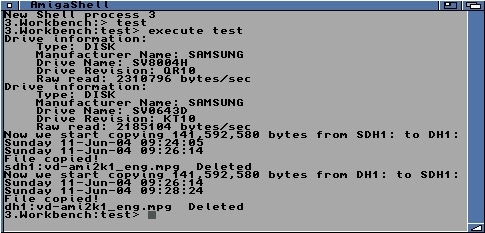

Copying (reading & writting) 141,592,580 bytes from SDH1: to DH1: 129 seconds
Copying (reading & writting) 141,592,580 bytes from DH1: to SDH1: 130 seconds



MKSoft DiskSpeed 4.2 Copyright © 1989-92 MKSoft Development ------------------------------------------------------------ CPU: 68040 AmigaOS Version: 40.68 Normal Video DMA Device: SDH1: Buffers: 200 Comments: The speed of SDH1: partition (Apollo 1240/40 without FastATA 1200) Testing with a 262144 byte, MEMF_FAST, LONG-aligned buffer. Create file: 2146588 bytes/sec Write to file: 2268242 bytes/sec Read from file: 2146588 bytes/sec

Check the results of the same tests when these hard drives are connected to the FastATA 1200 ports.
