Mirage 1200
Mirage 1200

Features
Mirage 1200 is a modern functional and spacious tower case. It is designed for these Amiga 1200 users who want to upgrade their computers with Mediator PCI busboards.

Mirage 1200 Tower offers comfortable use of all the PCI and Zorro cards installed in the computer. The new, powerful, 300W ATX PSU is prepared for massive expandability of your computer hardware.

Installation
It is so simple and you don't need to know anything about electronics or structural engineering. If you can manage stacking a few Lego bricks together, you will manage this work, too.

Mirage 1200 Tower is prepared for
installation of the Mediator PCI 1200 SX busboard with up to 6 PCI cards in its slots. See Amiga with such hardware.

How to install connectors and jumpers you can find at the following photos:

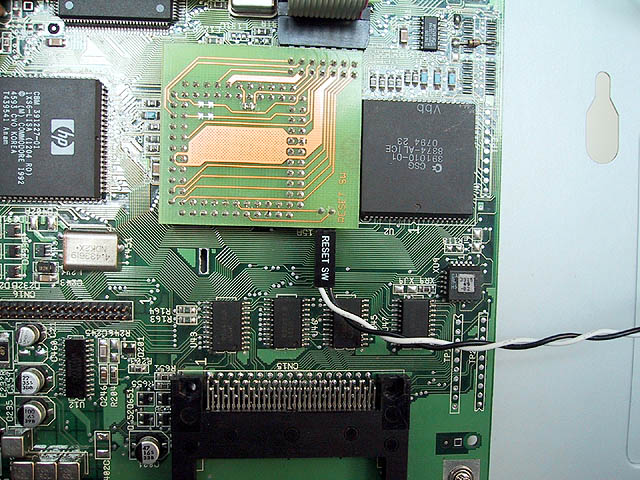

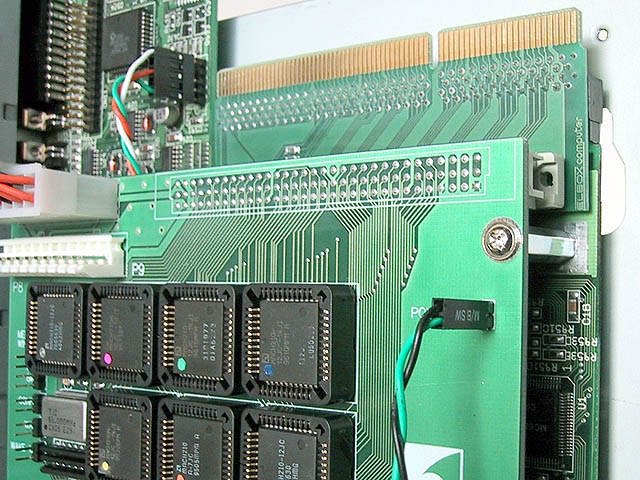

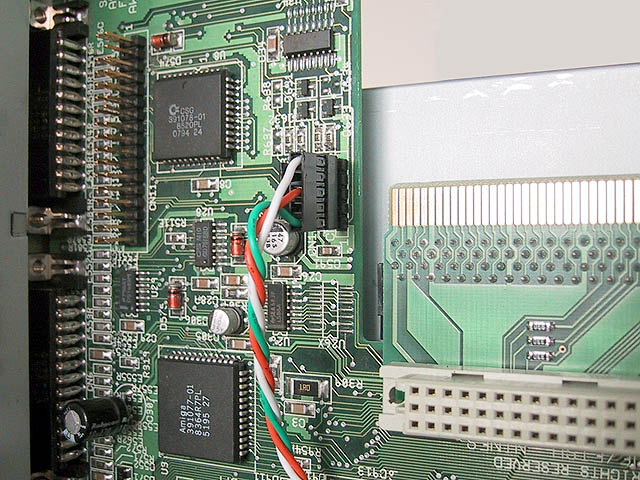

Reset Switch, HDD and Power LEDs, ATX Power Connector, Power Switch
.

Technical Specification

Mirage 1200 Tower case features:


300W ATX power supply unit
6 bays for 5.25" drives
1 bay for the Amiga floppy disk drive
(FDD front panel included)
1 external bay for a 3.5" device
2 internal bays for 3.5" hard disk drives
Chassis structure: steel
Possible assembly of busboards:
  Mediator PCI 1200 SX,
Mediator PCI 1200,
Zorro IV,

Zorrro IV with
Mediator PCI ZIV or
Zorro II
.
Note: Some busboards require an additional ATX-to-AT converter.
Dimensions:
- - length 430 mm (16.9 in)
- - width 190 mm (7.5 in)
- - height 620 mm (24.4 in)
Weight: 12.5 kg (27.5 lb)
Front panel:
- - POWER button
- - RESET button
- - Green LED: power supply unit working
- - Red LED: HDD working
Case structure guarantees EMC electromagnetic noise shielding

Pricing
Mirage 1200 Tower Suggested Retail Price (VAT and local taxes excluded):
see Product Price List.




BUY IT!


Features

Installation


Technical Specification

Pricing
